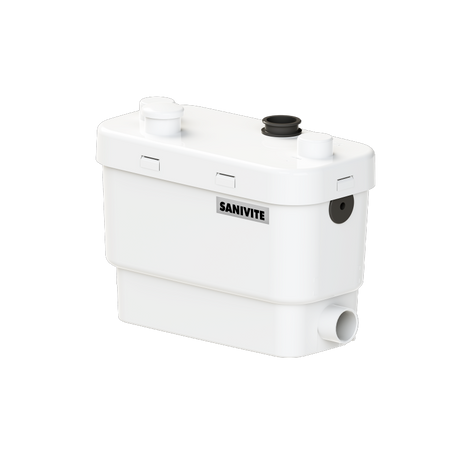

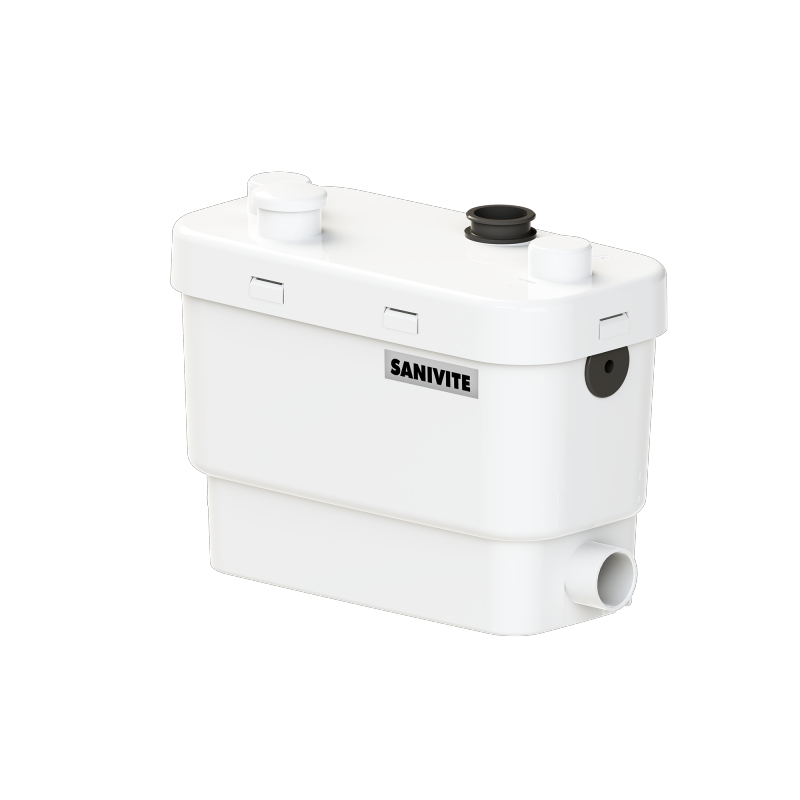

Sanivite+ Macerator Pump

Compatible Applications

• Ideal for kitchen appliances and sinks, this unit deals with hot soapy water
• Powerful, quiet pump but compact for concealed installation
• Lower activation level (95mm)
• Pumps up to 5m vertically or 50m horizontally

Weight 6,2 kg

Number of available inlets 4

Inlet diameter 40 mm

Recommended discharge pipe diameter 32 mm

Motor power 400W

Supply voltage 220-240V/50Hz

Electrical class 1IP rating IP44

Sound level42 dB(A)

Maximum horizontal discharge 50m

Maximum vertical discharge 5 m

Maximum flow rate 90L/min 6000 l/h

Activation level 110mm

Maximum current consumption 1.7 A

Discharge pipe diameter 32 mm

Maximum water temperature 40 °C (max 5 minuter 65 °C)
